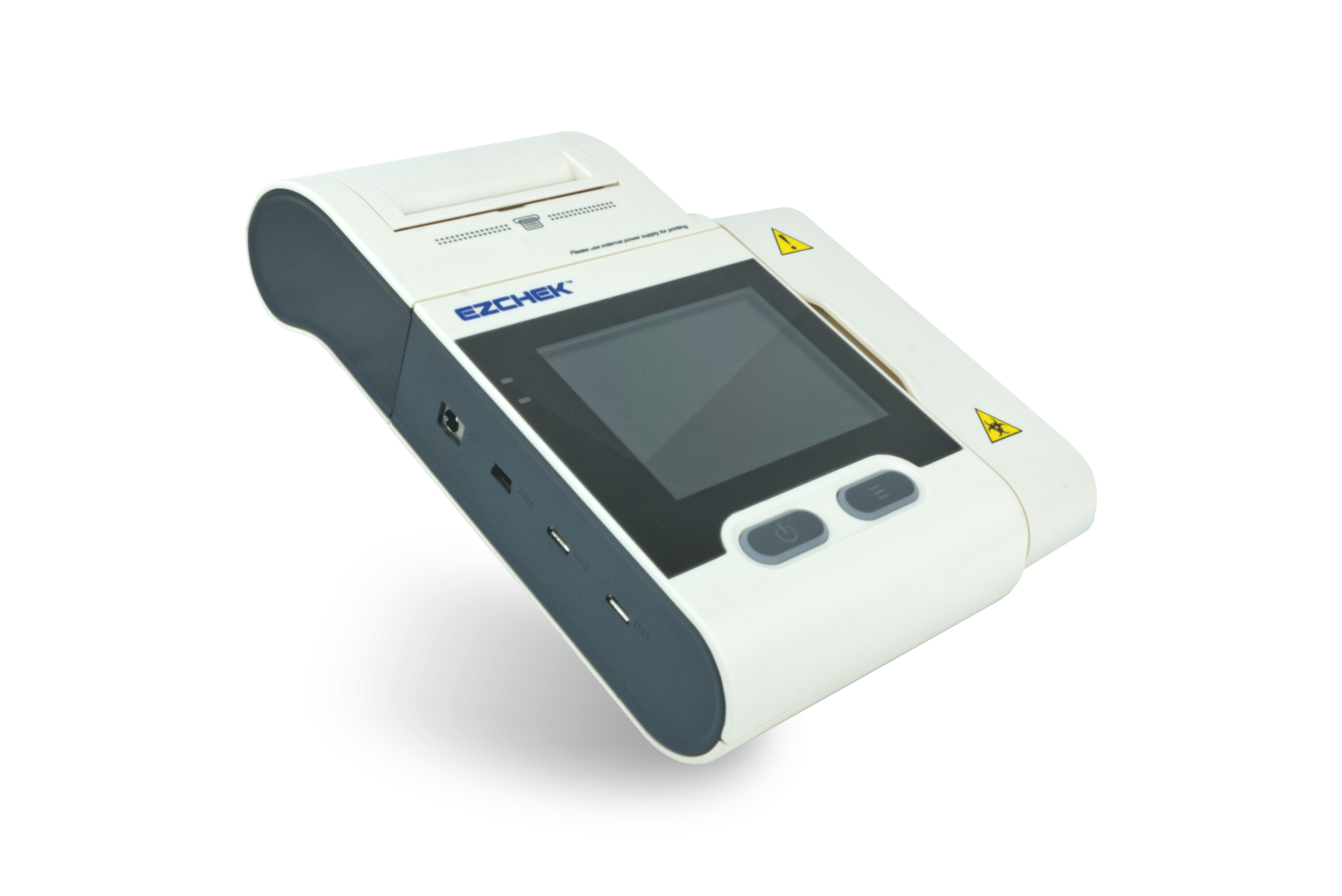

Urine Analyzer EZCHEK
The EZCHEK Urine Analyzer is a compact portable device that allows for semi-quantitative assessment of urine composition using dry chemistry method. It operates based on photoelectric colorimetry, which means it evaluates the content of biochemical components in urine by detecting color changes resulting from reactions between reagents and biochemical components. The urine analyzer reads strips with reagents for urine analysis.
Importantly, it enables result storage and report generation without the need for special training.
It is lightweight and can be conveniently used during field visits due to its battery power supply, weighing only 600g. It features a built-in printer and a memory capacity to store the results of the last 10,000 tests. Additionally, device cleanliness and hygiene can be easily maintained thanks to the available “side flap.”
The product is designed for professional use.
The analyzer can assess up to 14 parameters in just 60 seconds:
- Calcium (CA)
- Glucose (GLU)
- Creatinine (CRE)
- Specific Gravity (SG)
- Urobilinogen (URO)
- Leukocytes (LEU)
- Ascorbic Acid (ASC)
- Bilirubin (BIL)
- Ketone (KET)
- Blood (BLO)
- Protein (PRO)
- Nitrites (NIT)
- Microalbumin (ALB)
- High sensitivity, specificity, and lack of cross-reactivity;
- Operating principle: photoelectric colorimetry;
- Built-in printer;
- Storage capacity for up to 10,000 test results;
- Easy device hygiene maintenance;
- Fast results in 60 seconds;
- Battery-powered device;
- Small size, easy to carry;
- Touchscreen display;
- For professional use.
Technical parameters of the analyzer:
- Weight: 600g.
- Dimensions: 200mm x 137mm x 52mm.
- Testing principle: reflectance photometry to assess the color change of the urine analysis strip, followed by the calculation of related component concentrations and semi-quantitative result derivation.
- Test wavelengths: 470nm, 525nm, 625nm.
- Testing speed: 60 samples per hour.
- Reporting method: LED diode; serial output.
- Internal micro thermal printer: 57mm.
- Display: 320×240 LED.
- Data input method: touchscreen.
- Report storage: 10,000 reports.
- Operating voltage: AC 100-240V 50/60Hz (for the adapter) 5V DC, 2A or 4×1.5V AA alkaline batteries.
- Power supply voltage fluctuations: ±10%.
- Surge category: II.
- Pollution degree: 2.
- Pollution: Negative sample test results will not show positive results after testing the sample with the highest positive result.
- Repeatability <CV, %: ≤1.0.
- Accuracy: Less than one degree compared to the reference value.
- Stability: Variable coefficient <CV, %: ≤1.0.
Product and Model:
- Product name: Urine Analyzer
- Model/Specification: AUR-200
